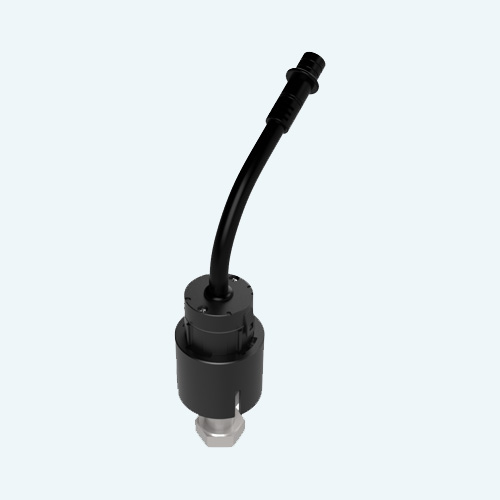

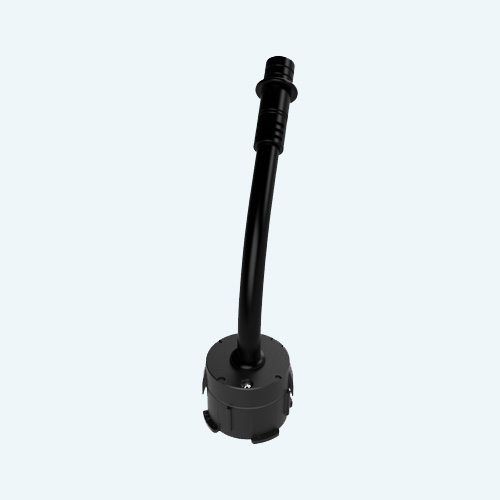

Bolt Loosening Sensor SA210S

SA210S is ideal for standard bolt applications.

Bolt Loosening Sensors Bolt Monitoring Products Products

CommunicationRS485
Feature DataLoosening angle
Loosening Angle Precision±0.5°
InterfaceRS485
Power12-24VDC
Dimensions36.2mm x 28mm (D x H)
Weight45g

Product Overview

Technical Specifications

Downloads

Overview

The SA-S series bolt loosening sensors are industrial-grade sensors designed to monitor the fastening status of critical bolts in industrial equipment. Built for harsh environments, these sensors offer exceptional resistance to interference, high accuracy, ultra-low power consumption, and long lasting durability for continuous operation.
Utilizing MEMS technology, each sensor accurately measures the relative rotation angle between the nut and bolt, effectively tracking bolt loosening. Additionally, the integrated attitude sensor detects movement and potential drops, providing enhanced monitoring capabilities.

The SA210S model is ideal for standard bolt applications.

Each sensor is equipped with an RS485 interface, capable of transmitting the data through the Modbus protocol. Users can remotely monitor the loosening rotation angle and receive timely alerts in case of bolt loosening, continuously track the entire process of bolt loosening, ensure the safe operation of equipment, prevent unplanned downtime, and reduce maintenance time and costs.

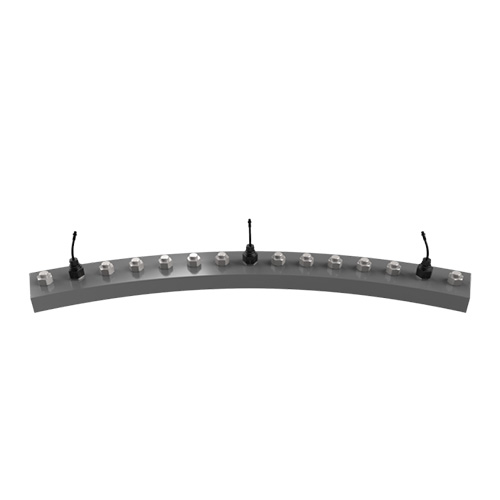

The bolt loosening sensor is installed non-intrusively on the nut. It uses advanced signal processing technology and algorithms to rapidly and precisely measure the nut's loosening rotation angle relative to the bolt, providing an accurate assessment of the bolt's fastening status.

Features and Advantages

Non-intrusive

No impact on the structure or strength of the bolt.

Accurate

Interference resistant and highly accurate, with a precision within ±0.5°

Easy-to-install

Compact, and lightweight design; mounted with adhesive and twist lock methods.

Ruggedized

Waterproof, dustproof, shockproof, and corrosion-resistant; suitable for harsh industrial environment.

Accessible

Remotely accessible anytime, anywhere; automatic alarm; maintenance free.

Convenient

Bluetooth compatible and connected via mobile APP.

Form FactorCompact design
Loosening Angle Precision±0.5°
Feature DataLoosening angle, measurement index, motion index, attitude index, temperature
Data Acquisition RateUp to 1Hz; configurable
CommunicationModbus
InterfaceRS485
Power12-24VDC

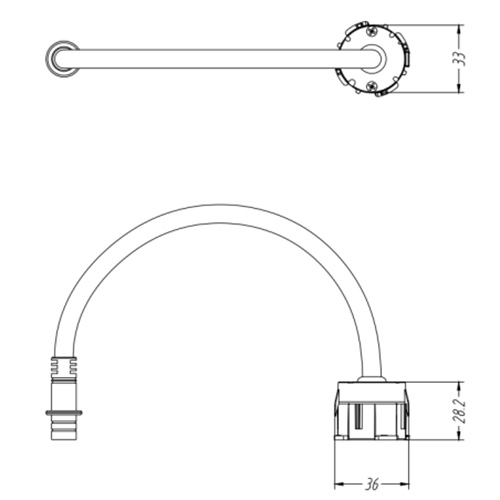

Dimensions36.2mm x 28mm (D x H)
Weight45g
Operating Temperature-40~85°C
Operating Humidity10%~90% RH
EnclosurePolyamide with fiberglass
Ingress ProtectionIP65

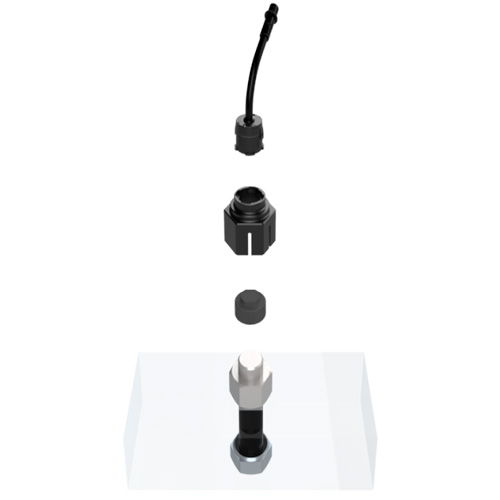

MountingAdhesive and twist lock / welding and twist lock
Lead Out ConnectorsWaterproof 4-pin 0.75 square male with nut
