Wireless Bolt Loosening Sensor SA210

SA210, Compact design; Application Scenarios: Regular bolts

Bolt Monitoring Products Products Wireless Bolt Loosening Sensors

CommunicationBluetooth 5.0
Feature DataLoosening angle
Loosening Angle Precision± 0.5°
Resolution0.01°
Application ScenariosRegular bolts
Operating Temperature-40~85°C
Operating Humidity10%~90% RH
Explosion ProtectionEX ia IIC T4 Ga
Ingress ProtectionIP67
Battery Life10 years

Product Overview

Technical Specifications

Downloads

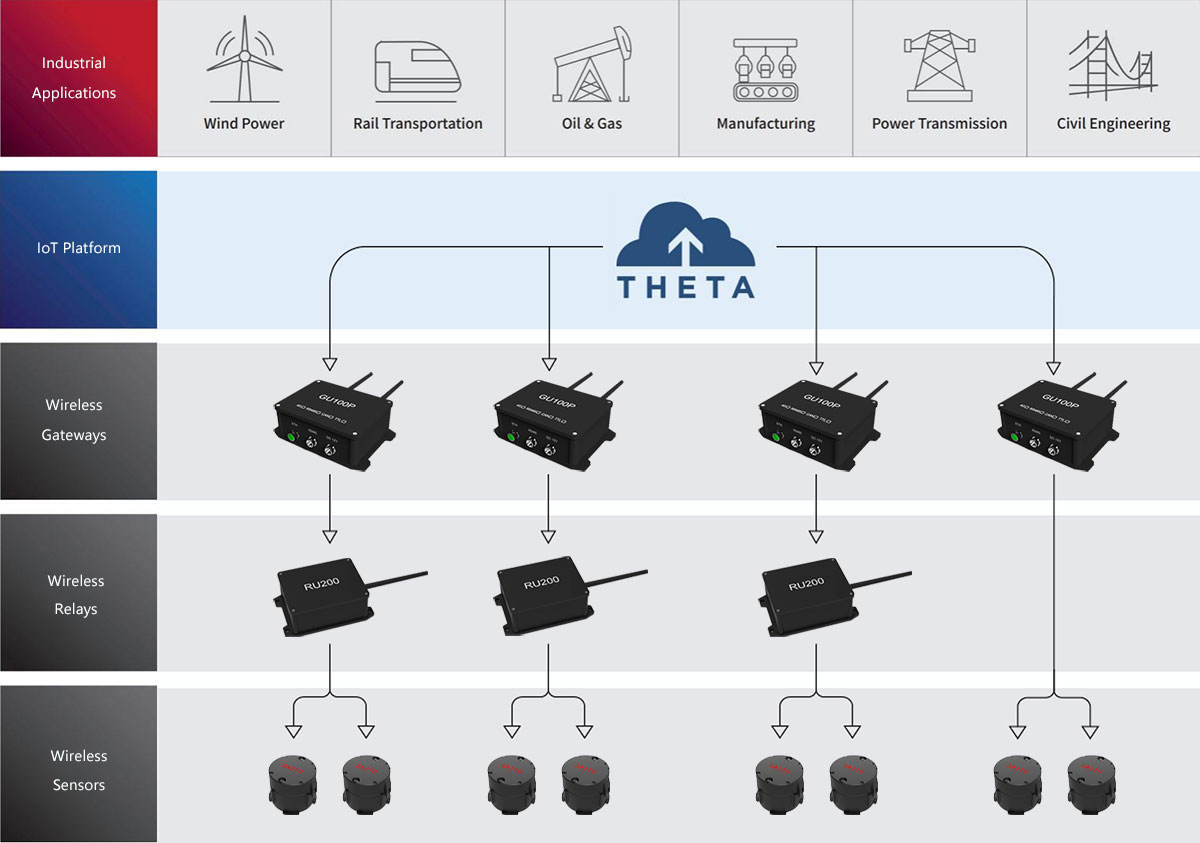

System Architecture

Overview

The SA series wireless bolt loosening sensors are industrial-grade sensors designed to monitor the fastening status of critical bolts in industrial equipment. Built for harsh environments, these sensors offer exceptional resistance to interference, high accuracy, ultra-low power consumption, and long lasting durability for continuous operation.
Utilizing MEMS technology, each sensor accurately measures the relative rotation angle between the nut and bolt, effectively tracking bolt loosening. Additionally, the integrated attitude sensor detects movement and potential drops, providing enhanced monitoring capabilities.

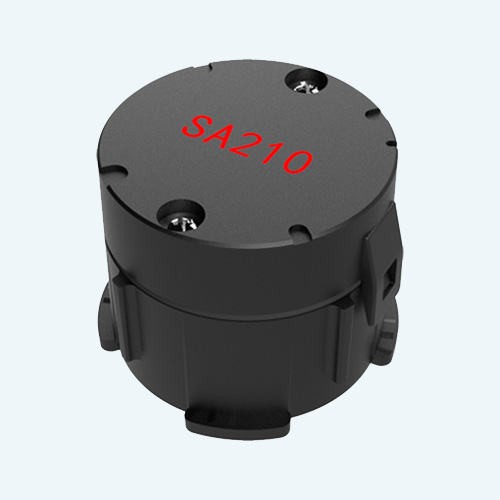

The SA210 model is ideal for standard bolt applications.

The sensor is transmitted wirelessly to a remote monitoring system, enabling users to monitor loosening angles, receive timely alerts, and track the entire loosening process. This ensures safe equipment operation, minimizes unplanned downtime, and reduces maintenance costs.

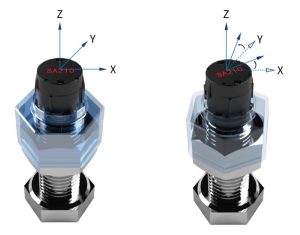

The SA series bolt loosening sensor is installed non-intrusively on the nut. Using advanced signal processing technology and algorithms, it rapidly and precisely measures the nut's loosening rotation angle relative to the bolt, providing an accurate assessment of the bolt's fastening status.

Features and Advantages

Non-intrusive

No impact on the structure or strength of the bolt.

Accurate

Interference resistant with high precision, within ±0.5°

Easy-to-install

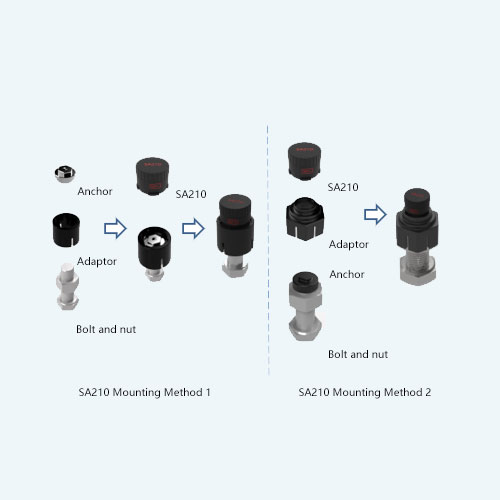

Cable-free, compact, and lightweight; mounted with adhesive or twist lock methods.

Wireless

Reliable data transmission via Bluetooth.

Low-powered

Built-in battery with 10 years of life for normal usage.

Ruggedized

Waterproof, dustproof, shockproof, corrosion-resistant, and intrinsically safe; suitable for harsh industrial environments.

Accessible

Remotely accessible anytime, with automatic alarm and maintenance- free operation.

Convenient

Bluetooth compatible and can be connected via mobile app.

Form FactorCompact design
Application ScenariosRegular bolts
Loosening Angle Precision± 0.5°
Resolution0.01°
Feature DataLoosening angle, measurement index, motion index, attitude index, temperature
Data Acquisition Period1/2/5/10/15/20/30/60/120/240/360/480/720/1440 minutes
CommunicationBluetooth 5.0, line-of-sight range 300m
Battery1200mAh Li/SOCL2; replaceable

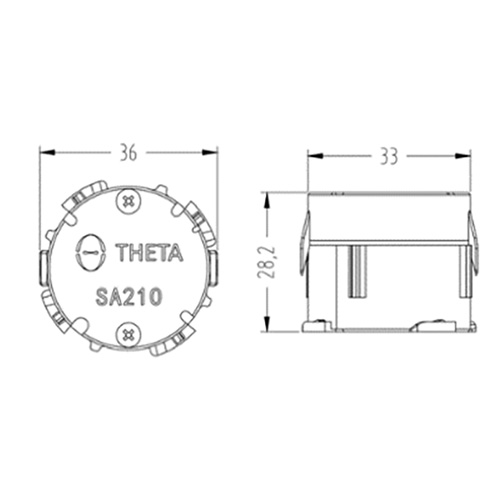

Dimensions36mm x 28.2mm (D x H)
Weight26g
Operating Temperature-40~85°C
Operating Humidity10%~90% RH
EnclosurePolyamide with fiberglass
Explosion ProtectionEX ia IIC T4 Ga
Ingress ProtectionIP67
