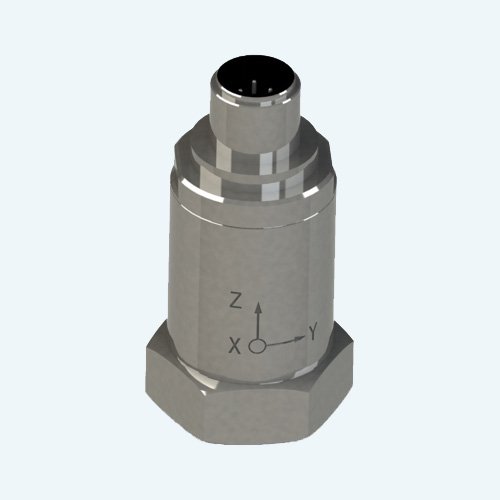

Vibration Sensor SVT210S

Acceleration Frequency Response: Z 0-6k; XY 0-5k

Products Vibration Sensors Vibration Sensors (RS485)

CommunicationRS485
Acceleration Frequency Response6k/5k
Acceleration Range±16g
Acceleration Resolution16 bits
Acceleration Sampling Frequency0.417-26.67ksps
Temperature Range-40～125℃
Temperature Precision±1℃
Explosion ProtectionEX ia IIC T4 Ga
Ingress ProtectionIP67

Product Overview

Technical Specifications

Downloads

Overview

The SVT-S series vibration sensors are industrial-grade sensors designed for equipment condition monitoring and fault diagnosis applications. Each sensor integrates vibration and temperature sensing capabilities, featuring low noise, high accuracy, ultra-low power consumption, and robust durability, making it suitable for long-term use in various harsh industrial environments.

The sensors use high-performance triaxial accelerometer sensors to capture equipment vibration signals. SVT210S incorporates a triaxial MEMS accelerometer.

vibration signals from the measured equipment. Additionally, the sensor boasts powerful edge computing capabilities, capable of calculating feature vibration data for detecting various mechanical anomalies and faults.
The sensor is equipped with an RS485 interface, capable of transmitting the feature data and waveform data through the Modbus protocol. Users can remotely monitor the vibration and temperature parameters of the equipment, promptly detect any abnormal operating conditions, ensure the safe operation of the equipment, and avoid unplanned downtime, thus reducing maintenance time and costs.

Features and Advantages

Accurate

Low noise, high-performance sensing, high frequency response.

Easy-to-install

Stud, adhesive, or magnetic mounting.

Edge computing

Outputs various vibration feature data for state monitoring and fault diagnosis.

Stable

Capable of transmitting both feature data and waveform data.

Ruggedized

Waterproof, dustproof, shockproof, corrosion-resistant, and intrinsically safe; suitable for harsh industrial environment.

Flexible

Configurable measurement range, sampling frequency, sampling points, and sampling period to meet specific requirements.

Accessible

Remotely accessible anytime, with automatic alerts and maintenancefree operation.

Convenient

Bluetooth compatible and can be connected via mobile app.

Accelerometer TypeTriaxial MEMS
Acceleration Resolution16 bits
Acceleration Range±16g
Velocity Range (@80Hz)0-200mm/s
Acceleration Sensitivity0.5mg/LSB
Acceleration Frequency Response6k/5k
Temperature Drift1%/℃
Nonlinearity2%
Noise(μg/√Hz)75
Acceleration Sampling Frequency0.417-26.67ksps
Feature Data Sampling Number1k/2k/4k
Velocity Frequency Range10Hz-1kHz
Displacement Frequency Range10Hz-1kHz (Low: 10Hz-200Hz; High: 200Hz-1kHz)
Envelope AccelerationSampling rates of 25.6/26.67/51.2/64ksps: 500Hz-10kHz (SKF ENV3) Other sampling rates: 500Hz high-pass filter
Acceleration FFT2048 lines (optional)
Vibration Feature DataFrequency, peak acceleration, acceleration RMS, velocity RMS, peak-to-peak displacement, envelope acceleration
Temperature Range-40～125℃
Temperature Precision±1℃
Data Acquisition PeriodMinimum 1 second; configurable
Waveform Data Acquisition Time10-20000ms
Data Storage64MB
CommunicationModbus protocol; RS485 interface
WirelessBluetooth 5.0
Power12-24VDC
Weight96g
Operating Temperature-40～85℃
Operating Humidity10%～90% RH
EnclosureStainless steel
Explosion ProtectionEX ia IIC T4 Ga
Ingress ProtectionIP67

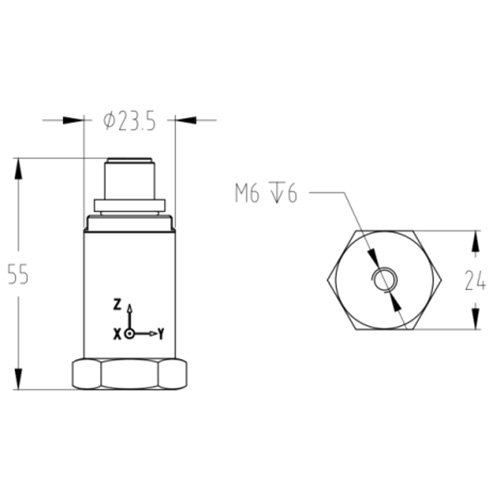

MountingStud, adhesive, or magnetic mounting
