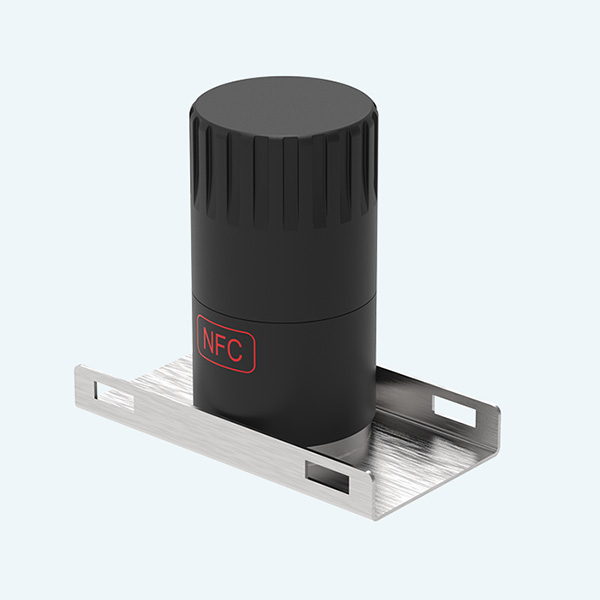

Wireless Temperature Sensor ST101-L

ST101-L, Integrated (normal temperature);
  • CommunicationLoRa
  • Measurement Range-45~125°C
  • Sensor TypeThermal resistance
  • Measurement Precision±1℃
  • Explosion ProtectionEX ia IIC T4 Ga
  • Ingress ProtectionIP67
  • Battery Life5-10 years
Product Overview
Technical Specifications
Downloads
System Architecture

Overview

The ST Series Wireless Temperature Sensors are industrial-grade devices engineered for precise temperature monitoring of industrial equipment. They offer high accuracy, ultra-low power consumption, and exceptional durability, making them ideal for long-term operation in harsh industrial environments.

ST101-L offer an integrated design, ideal for surface temperature monitoring. Installation is straightforward using adhesive, screws, clamps, or magnetic methods.

The sensor data is transmitted wirelessly to remote monitoring system, allowing users to monitor the temperature and receive timely alerts, continuously track the entire process, ensure the safe operation of equipment, prevent unplanned downtime, and reduce maintenance time and costs.

APPLCATIONS

  • Equipment Monitoring
  • Pipeline Monitoring
  • Container Monitoring
  • Environment Monitoring
  • Form FactorIntegrated (normal temperature)
  • Sensor TypeThermal resistance
  • Measurement Range-45~125°C (sensing element)
  • Measurement Precision±1℃
  • Data Acquisition Period1/2/5/10/15/20/30/60/120/240/360/480/720/1440 minutes
  • CommunicationLoRa/LoRaWAN Wireless Sensor Network, line-of-sight range 3000m
  • Battery6500mAh Li/SOCL2 replaceable
  • Dimensions90 x 46 x 81.5mm (L x W x H)
  • Weight150g
  • Operating Temperature-40~85°C
  • Operating Humidity10%~90% RH
  • EnclosureMetal and polyamide with fiberglass
  • Explosion ProtectionEX ia IIC T4 Ga
  • Ingress ProtectionIP67
  • MountingScrews, adhesive, clamping ring or magnetic mounting
